Measurements: 7. Wheel_Clearance_Gap-left on Mouse

NameParentTypeNominalUSLLSLFeat_List1Feat_List2
Wheel_Clearance_Gap-leftMouseDVTI_ptdistPoint Distance-14.539210+2.000000+0.000000Wheel_Measg1(Fr)Wheel_Measg1(To)
Five Button Mouse Report_UserView_Wheel_Clearance_Gap-left_Mouse

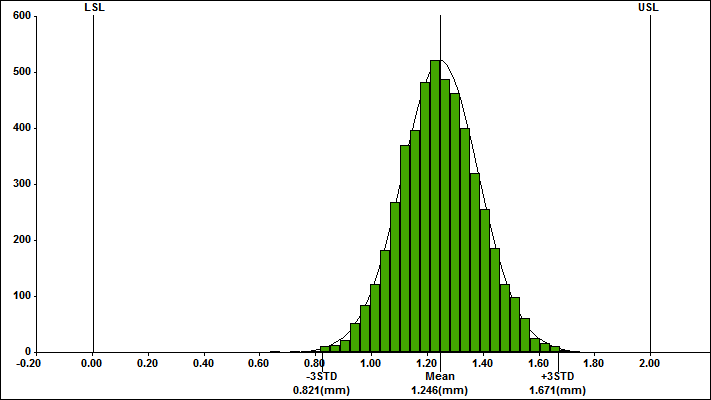

Runs Nominal Mean STD 6STD LSL USL L-OUT% H-OUT% Tot-OUT% Est.Type Est.Low Est.High Est.Range
5000 1.245(mm) 1.246(mm) 0.142(mm) 0.850(mm) 0.000(mm) 2.000(mm) 0.000 0.000 0.000 Pears. IV 0.799(mm) 1.692(mm) 0.893(mm)

Images\Five Button Mouse Report_Simu_Wheel_Clearance_Gap-left_Mouse.png not found

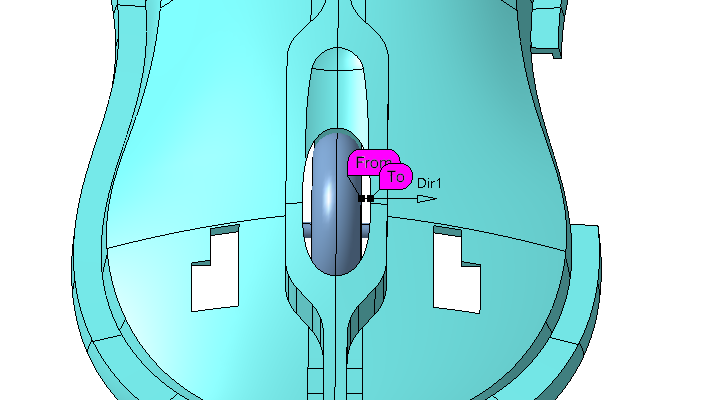

Five Button Mouse Report_UserView_Wheel_Clearance_Gap-left_Mouse

Index Contributor Feature Part Range Contribution Graph
1 Surface_profile_1 CadSurf14 Base_1 M:0.500(mm)
 29.38%

2 SurfProf_TopCover Top_Cover-UD3 PCB_1 M:0.500(mm)
 19.66%

3 SurfProf_TopCover Top_Cover-UD4 PCB_1 M:0.500(mm)
 19.66%

4 SurfProf_wheel Wheel_Measg1 Wheel_1 M:0.300(mm)
 12.03%

5 Surface_profile_2 CadSurf18 Top_Cover_1 M:0.300(mm)
 12.00%


Sum of Remaining 9 Contributors = 7.27%

Index Contributor Feature Part Range G Factor 6 Sigma Contribution Graph
1 Surface_profile_1 CadSurf14 Base_1 0.500(mm) 0.938 0.469(mm) 29.379%

2 SurfProf_TopCover Top_Cover-UD3 PCB_1 0.500(mm) -0.767 0.384(mm) 19.658%

3 SurfProf_TopCover Top_Cover-UD4 PCB_1 0.500(mm) 0.767 0.384(mm) 19.658%

4 SurfProf_wheel Wheel_Measg1 Wheel_1 0.300(mm) -1.000 0.300(mm) 12.026%

5 Surface_profile_2 CadSurf18 Top_Cover_1 0.300(mm) -0.999 0.300(mm) 12.005%

Total           0.865(mm)

Sum of Remaining 9 Contributors = 7.273%
