Measurements: 6. PCB_Hole_Pin_Clearance on Mouse

NameParentTypeNominalUSLLSLFeat_List1Feat_List2
PCB_Hole_Pin_ClearanceMouseDVTI_virtclrVirtual Clearance-85.075434+1.800000+1.000000CadSurf21(Fr1), CadSurf10(Fr2)

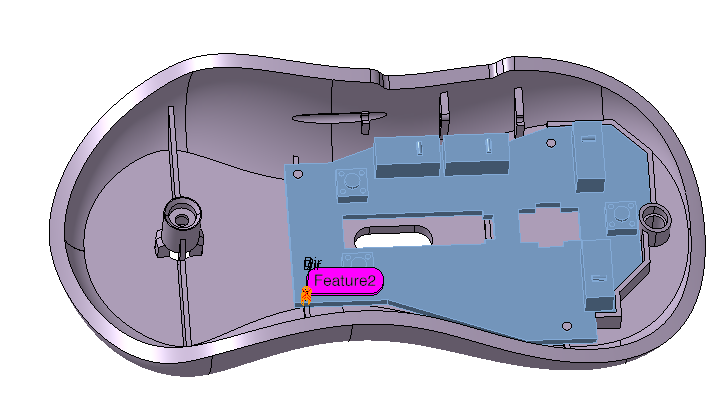

Five Button Mouse Report_UserView_PCB_Hole_Pin_Clearance_Mouse

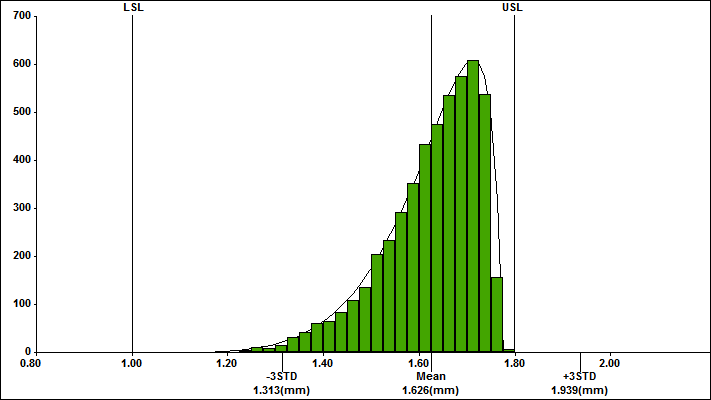

Runs Nominal Mean STD 6STD LSL USL L-OUT% H-OUT% Tot-OUT% Est.Type Est.Low Est.High Est.Range
5000 1.800(mm) 1.626(mm) 0.104(mm) 0.625(mm) 1.000(mm) 1.800(mm) 0.000 0.000 0.000 Pearson I 1.207(mm) 1.768(mm) 0.561(mm)

Images\Five Button Mouse Report_Simu_PCB_Hole_Pin_Clearance_Mouse.png not found
Five Button Mouse Report_UserView_PCB_Hole_Pin_Clearance_Mouse

Index Contributor Feature Part Range Contribution Graph
1 Surface_profile_1 CadSurf16 Base_1 M:0.500(mm)
 49.37%

2 Surface_profile_1 CadSurf15 Base_1 M:0.500(mm)
 25.39%

3 Surface_profile_1 CadSurf14 Base_1 M:0.500(mm)
 15.70%


Sum of Remaining 3 Contributors = 9.54%

Index Contributor Feature Part Range G Factor 6 Sigma Contribution Graph
1 Surface_profile_1 CadSurf16 Base_1 0.500(mm) 0.858 0.429(mm) 46.758%

2 Surface_profile_1 CadSurf15 Base_1 0.500(mm) -0.614 0.307(mm) 23.953%

3 Surface_profile_1 CadSurf14 Base_1 0.500(mm) 0.484 0.242(mm) 14.887%

4 Pos_PCBclear CadSurf10 PCB_1 0.200(mm) 0.707 0.177(mm) 7.972%

5 Position_3 CadSurf21 Base_1 0.200(mm) 0.707 0.141(mm) 5.080%

Total           0.627(mm)

Sum of Remaining 2 Contributors = 1.349%
