Measurements: 10. Top_Cover_Surf_Flush2 on Mouse

NameParentTypeNominalUSLLSLFeat_List1Feat_List2
Top_Cover_Surf_Flush2MouseDVTI_ptdistPoint Distance+0.000000+0.500000-0.500000LRCover_Measf2(Fr)LRCover_Measf2(To)

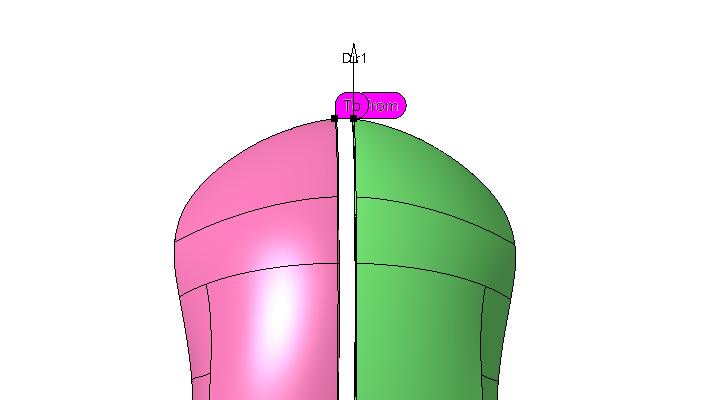

Five Button Mouse Report_UserView_Top_Cover_Surf_Flush2_Mouse

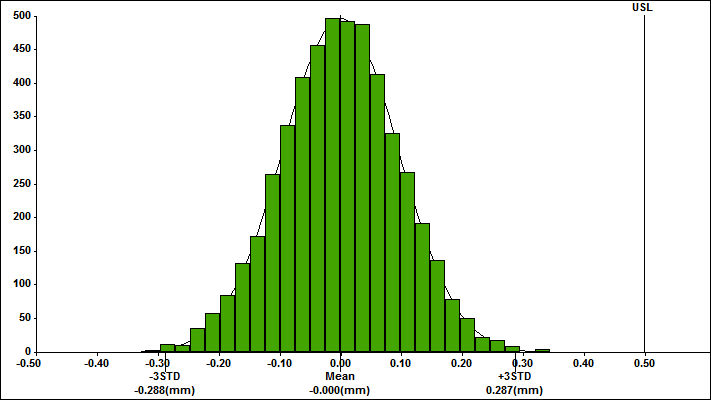

Runs Nominal Mean STD 6STD LSL USL L-OUT% H-OUT% Tot-OUT% Est.Type Est.Low Est.High Est.Range
5000 0.000(mm) -0.000(mm) 0.096(mm) 0.575(mm) -0.500(mm) 0.500(mm) 0.000 0.000 0.000 Normal -0.288(mm) 0.287(mm) 0.575(mm)

Images\Five Button Mouse Report_Simu_Top_Cover_Surf_Flush2_Mouse.png not found
Five Button Mouse Report_UserView_Top_Cover_Surf_Flush2_Mouse

Index Contributor Feature Part Range Contribution Graph
1 SurfProf_Cover LRCover_Measf2 Left_Cover_1 M:0.300(mm)
 27.72%

2 Surface_profile_1 CadSurf8 Right_Cover_1 M:0.300(mm)
 27.72%

3 Position Left_Cover-4way Left_Cover_1 M:0.100(mm)
 10.84%


Sum of Remaining 23 Contributors = 33.70%

Index Contributor Feature Part Range G Factor 6 Sigma Contribution Graph
1 SurfProf_Cover LRCover_Measf2 Left_Cover_1 0.300(mm) -0.994 0.298(mm) 27.437%

2 Surface_profile_1 CadSurf8 Right_Cover_1 0.300(mm) 0.994 0.298(mm) 27.437%

3 Position Left_Cover-4way Left_Cover_1 0.100(mm) 0.960 0.195(mm) 11.695%

Total           0.569(mm)

Sum of Remaining 23 Contributors = 33.431%
